Purchase day
In the shop
Profile milling setup
the pics here are
usually full size files for
clarity. You may have to
slide the images around
to see the hole thing.

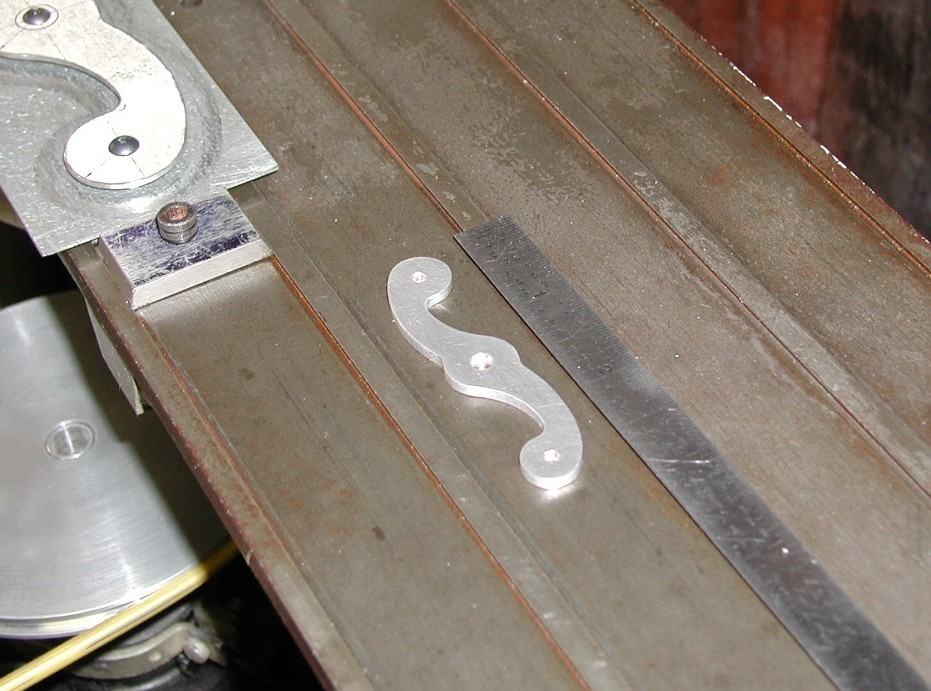

Purchase day. Second pic: Milling fixture setup on table, Third pic: Finished part
Seeing the 1-D for the first time.
Serial number dates this machine to November 1927. Machine originally built for and sold to a well respected
engraving, stamp making firm 35 miles away from me. Still tight and true, a joy to work with.
The motor support column and motor assembly were long ago replaced by a shop built arm arrangement that mounts on
the right side of the machine to power the spindle. Pulley sizes are too small for higher spindle speeds and will need to
be addressed one day.
Profile milling setup for reel handles.
First pic: 2:1 Profile master mouned on copy holder,
tracing stylus and bushings
More below,
partially milled blank in place.
.005 penetration of blank per orbit.
More below,
.094 thick alum 6061T6
